ROUGH TERRAIN ARTICULATING PLATFORMS
Nacela HA 41 RTJ PRO

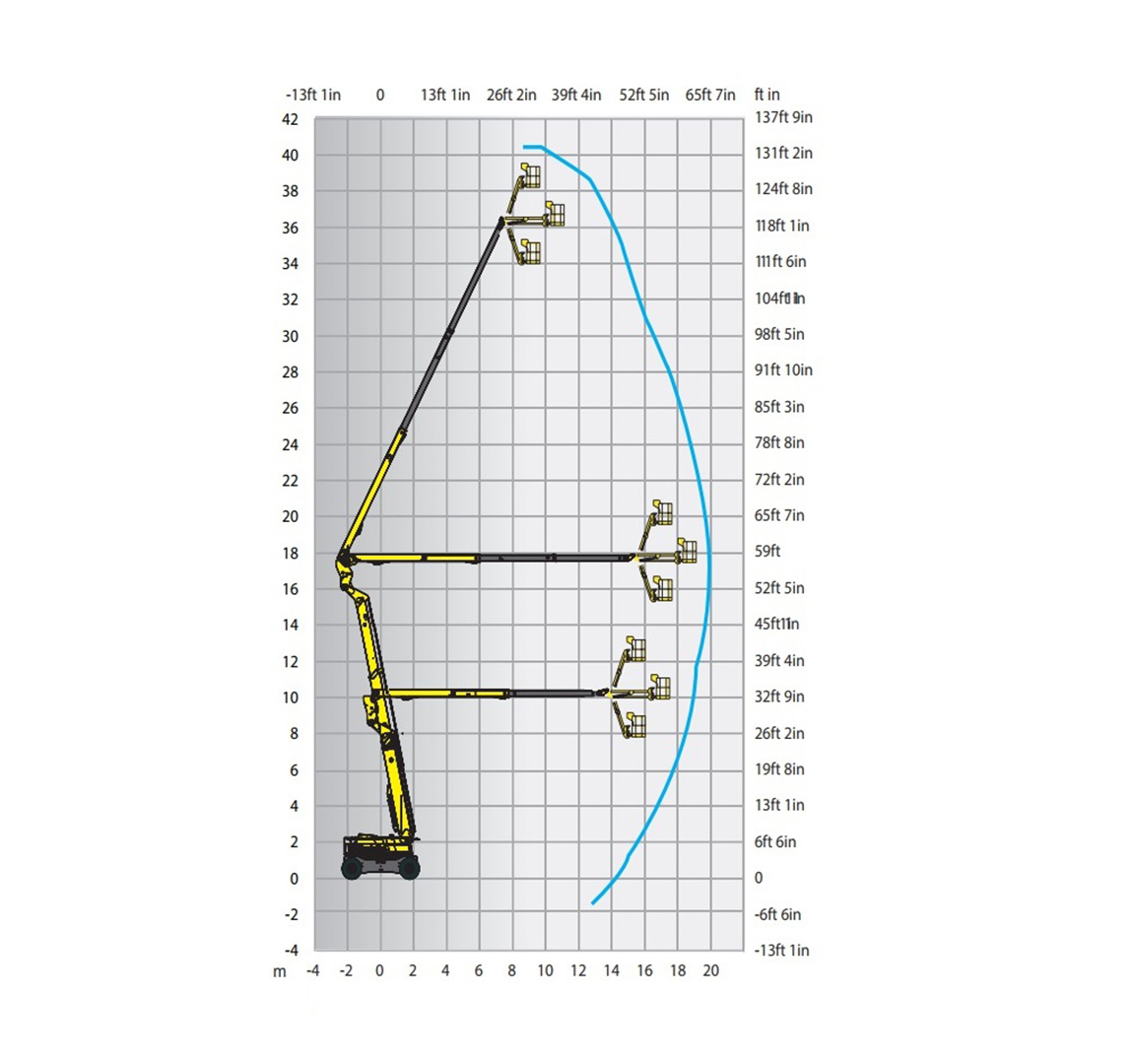

| Working height | 41.50 m |
| Platform height | 39.50 m |
| Horizontal outreach | 20.10 m |
| Up and over clearance | 17.50 m |
| Lift capacity | 230 kg |
| Basket size | 2.44 x 0.91 m |
| Overall length | 13.10 m |
| Overall width | 2.50 m |
| Height – stowed | 2.99 m |
| Transport length | 11.00 m |
| Transport height | 3.73 m |
| Ground clearance | 38 cm |
| Wheelbase | 3.50 m |
| Drive speed | 0.5 – 5 km/h |
| Turning radius – outside | 5.74 m |
| Turntable rotation | 360 |
| Vertical jib rotation | 140 (+70/-70) |
| Basket rotation | 180 (+90/-90) |
| 4 x 4 Tires foam – filled | 445/65-22.5 |
| Gradeability | 40% |
| Hydraulic system capacity | 190 l |
| Diesel engine | 55 kW – 74 hp |
| Weight | 23900 kg |
