ROUGH TERRAIN ARTICULATING PLATFORMS
Nacela HA 16 RTJ

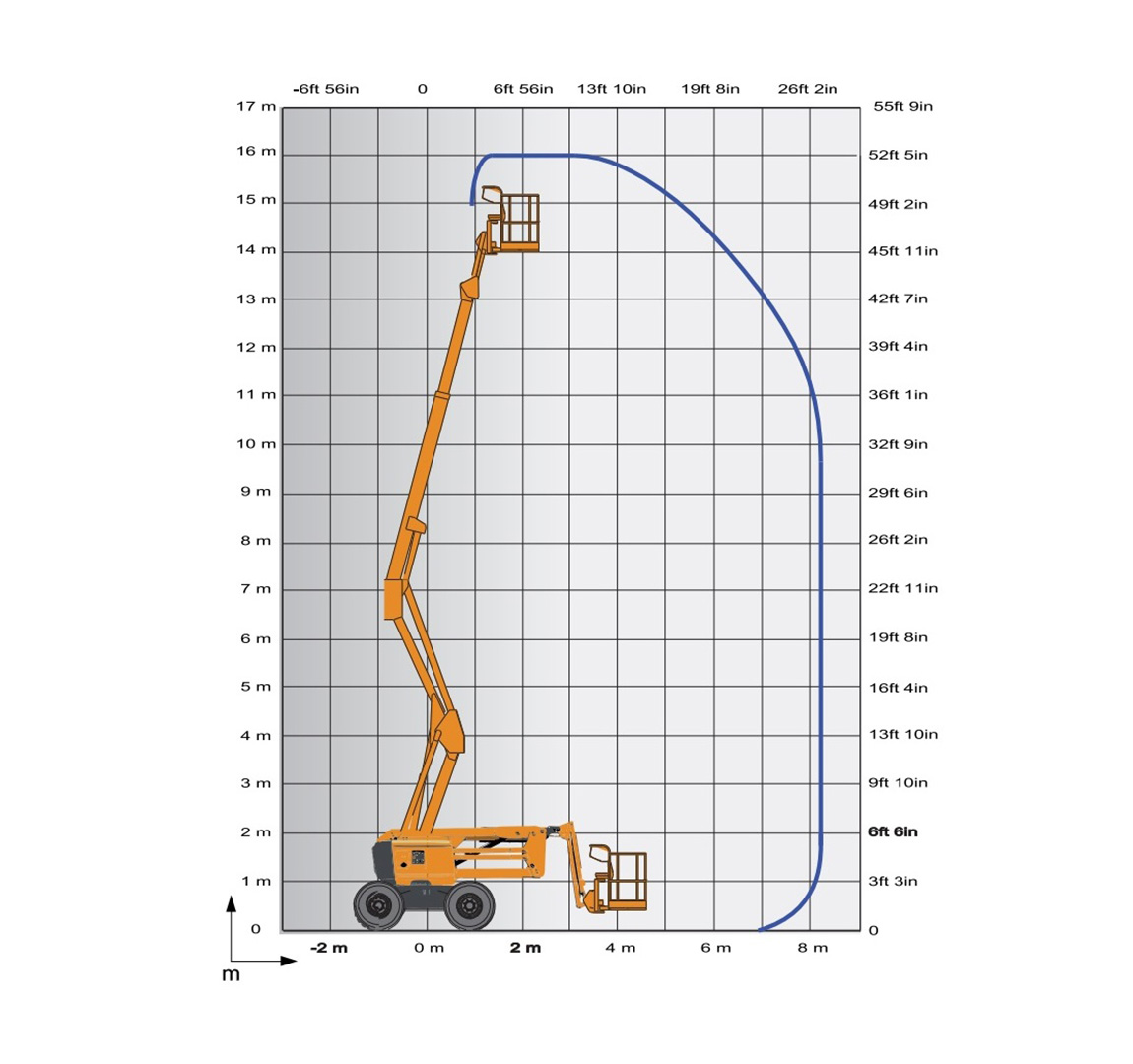

| Working height | 16.00 m |
| Platform height | 14.00 m |
| Horizontal outreach | 8.30 m |
| Up and over clearance | 7.65 m |
| Lift capacity | 230 kg |
| Basket size | 1.83 x 0.80 m |
| Overall length | 6.75 m |
| Overall width | 2.30 m |
| Height – stowed | 2.30 m |
| Transport length | 5.05 m |
| Transport height | 2.40 m |
| Ground clearance | 38 cm |
| Wheelbase | 2.01 m |
| Drive speed | 0.5 – 5 km/h |
| Turning radius – outside | 3.75 m |
| Turntable rotation | 360 |
| Vertical jib rotation | 140 (+60/-80) |
| Basket rotation | 165 (+90/-75) |
| 4 x 4 Tires foam – filled | 14/17.5 |
| Gradeability | 40% |
| Hydraulic system capacity | 76 l |
| Diesel engine | 26 kW – 36 hp |
| Weight | 6200 kg |
