ELECTRIC SCISSOR LIFTS

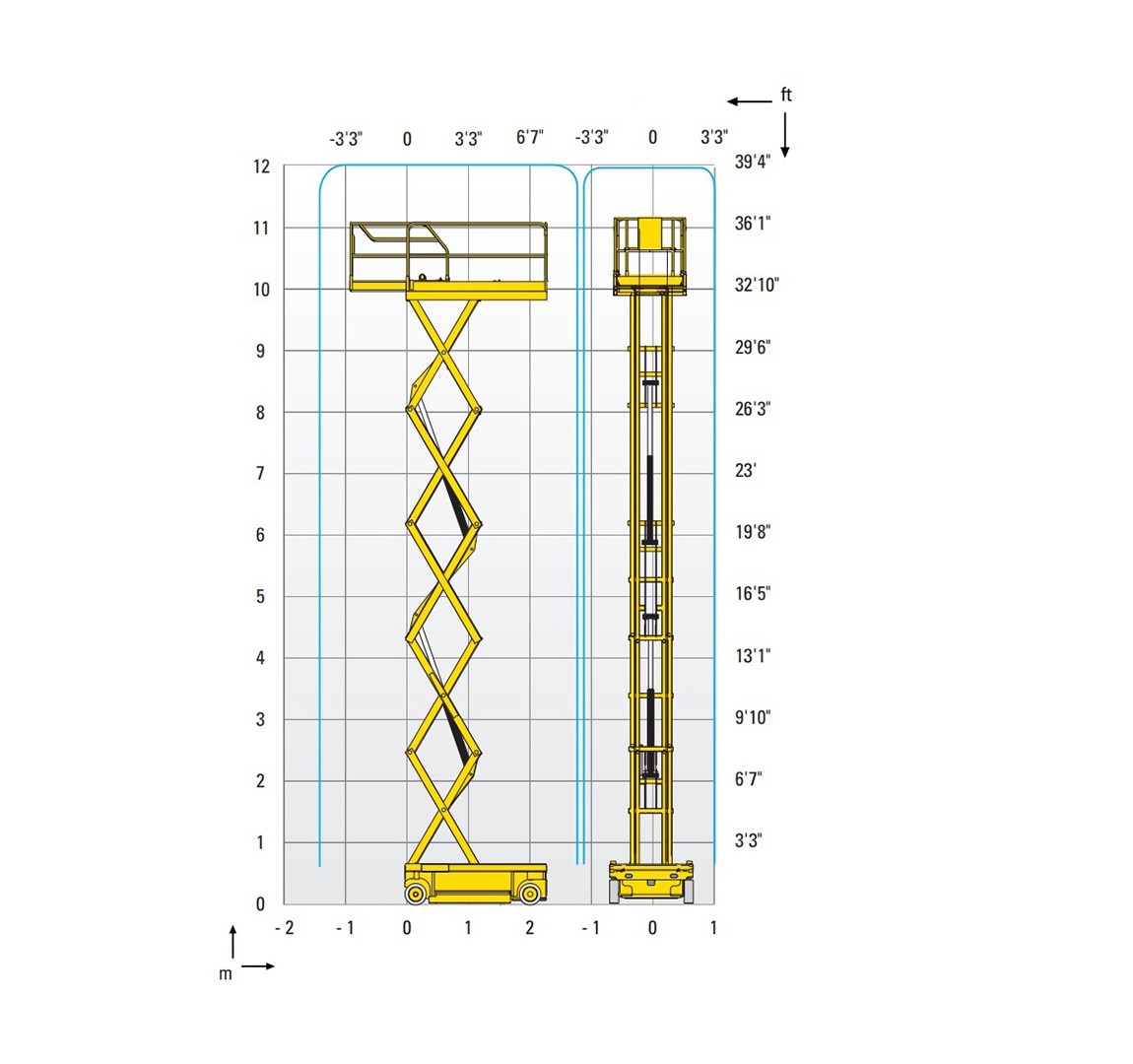

Nacela Compact 10
| Working height | 10.15 m |
| Platform height | 8.15 m |
| Lift capacity – inside | 450 kg |
| Platform length – outside | 2.31 m |
| Platform length – extended | 3.23 m |
| Length – extension | 0.92 m |
| Platform width outside | 1.2 m |
| Storage height | 1.4 m |
| Height – stowed | 2.26 m |
| Overall width | 1.2 m |
| Overall length | 2.49 m |
| Wheelbase | 1.86 m |
| Ground clearance – Center | 13 cm |
| Lateral ground clearance | 2.5 cm |
| Drive speed | 0.8 – 2.9 km/h |
| Gradeability | 23 % |
| Tilt | 2 |
| Lift/lower speed | 32 s / 42 s |
| Turning radius – outside | 2.5 m |
| Tires – non marking | 15 x 5 |
| Power source | 24 V – 340 Ah |
| Hydraulic system capacity | 25 l |
| Weight | 2330 kg |
Extended warranty will be applied within supplier conditions.
